R-309 Radio receiver

R-309 HF radio receiver. Main professional communication radio. Frequency range: 1 - 36 MHz.

Shortwave radio receiver R-309 “Barley”. The receiver was produced at the Kharkov Radio Plant from 1967 to 1982. Range of received frequencies: 1 – 36 MHz.

R-309 HF radio receiver. Main professional communication radio. Frequency range: 1 - 36 MHz.

Radio receiver R-309 superheterodyne with double frequency conversion, assembled on miniature lamps with flexible leads of the “acorn” type: 11 tubes 1V29B 2 – 1V37B, 12 – 1V24B, 25 radio tubes in total. Range switch: mechanical, drum type. Scale: illuminated optical photo-scale. Weight: 35 kg. Dimensions: 480 x 290 x 440 mm.

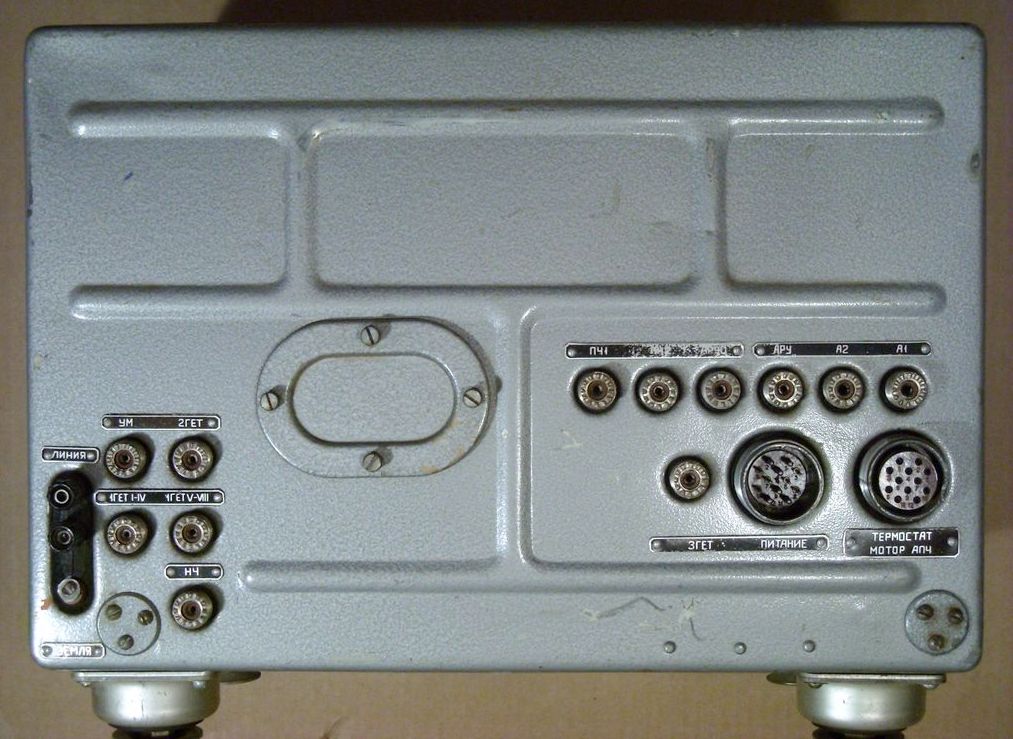

Shortwave radio receiver R-309 Barley

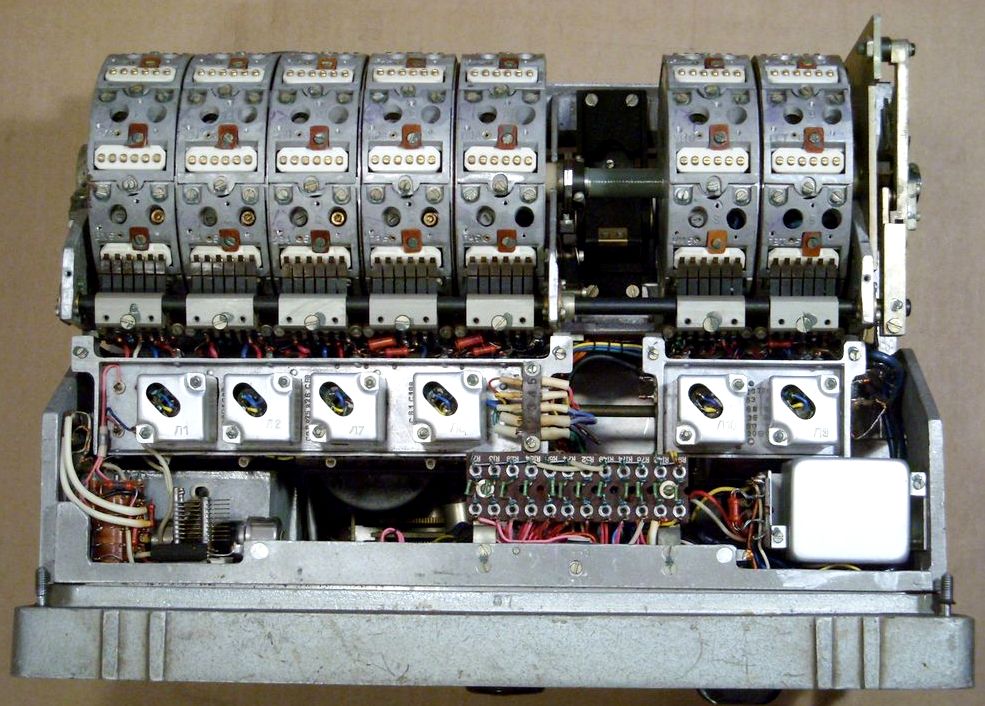

Shortwave radio receiver R-309 Barley
R-309 HF radio receiver. Main professional communication radio. Frequency range: 1 - 36 MHz.
R-309 HF radio receiver. Main professional communication radio. Frequency range: 1 - 36 MHz.

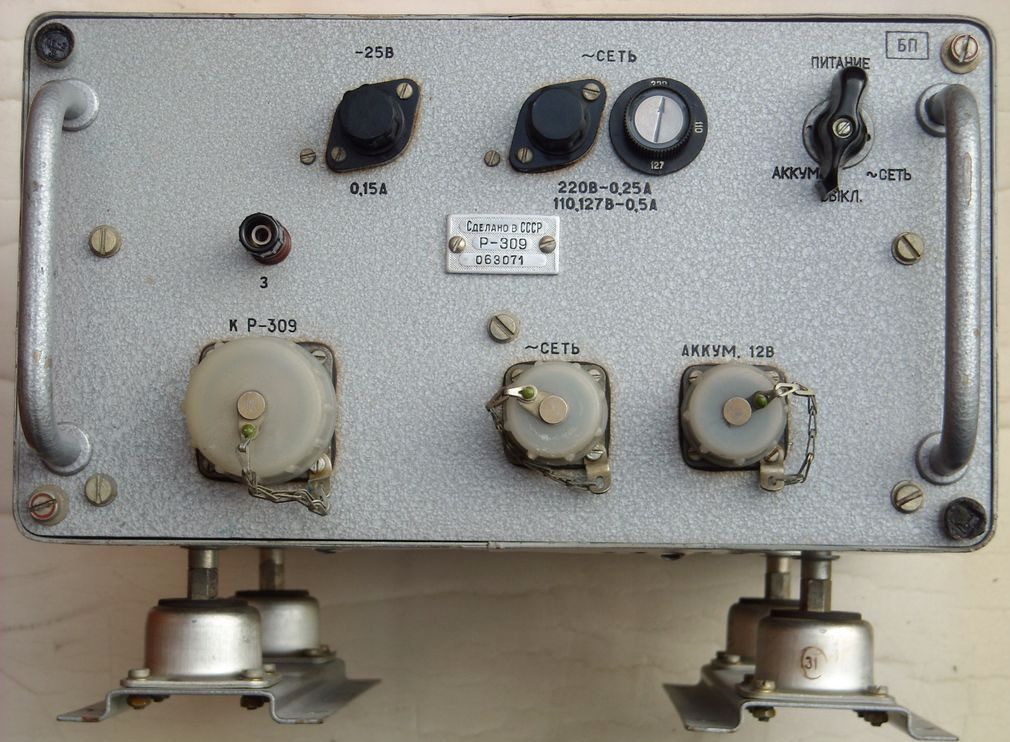

Power unit radio receiver R-309
